Radio Ranger Rc Fishing Boat Modification

15 Nov

Turning the Radio Ranger Rc Fishing boat into a Rocket Rc Fishing Boat is not as complicated as it sounds. Buying your own parts for the modifications also gives you a better range of options you can put into your new rc fishing boat project.
One of the main features of the Radio Ranger as is right out of the box is how simple the electronics are compared to a $600 hobby rc boat like the Traxxas Spartan.
Unfortunately, there really isn’t a rc boat on the market size wise with hobby electronics under about $500.
What we’re going to show you below is a simple, and affordable way to get all the hobby upgrades for a fraction of the price of a hobby grade boat. Plus if you put your mind to it there are dozens of interesting new rc options you can build into your new mod.
First a little basics to know and then it is pretty easy to go from there building your ultimate Rc Fishing Machine.
The receiver (black box) in the boat, I call it the Brain of the boat, basically that’s what it does, it runs all the boat functions. When you move something on your transmitter it tells the receiver box to do something. The neat part about a hobby grade receiver box is there are different channels, I like to call them outlets, or plugs, to plug things in to. Depending on how many channels, (or plugs) your receiver box has will determine how many attachments or how many combinations of options you can install into your boat.
For instance, what are some of the options you might want for your Ultimate Rc Fishing Boat? Besides motors and steering, lets see. You can add lights, and its easy, today you can get an led strip of lights that just plug into your receiver box, no tricky wiring to it, just plugs into your receiver, same as the other options we’ll look at here.

Just plugs into your rc fishing boat receiver box

Just plugs into your rc fishing boat receiver box

These Lights are just a few of the many optional light configurations, there are also light strips to illuminate the whole boat. A simple option to light up your fishing boat without any modifications is simply buying those battery operated lights and putting it inside the hull of your boat. We’ve done that too, turns your Radio Ranger into a big Light Bulb. Now these lights and other lights are available on Ebay, or Aliexpress too for $2-$3 each.





Moving on, how about a Grabber attachment?





2x 3900kv watercooled brushless inrunner motors

Thunder Tiger 1/14 Kaiser XS M-39 BRUSHED MOTOR & BULLET CONNECTORS 390 Sizemotors
2x 50a Hobby King watercooled waterproof ESC’s

esc

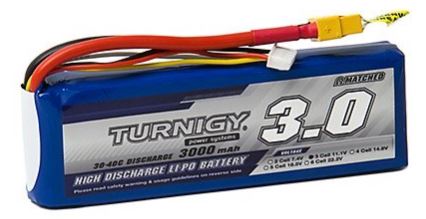

2x 11.1v 3000mah 30c lipo’s

battery
Flysky 2.4G transmitter and receiver
2x water pickups on the bottom
Dual water outlet on side
20gm waterproof steering servo

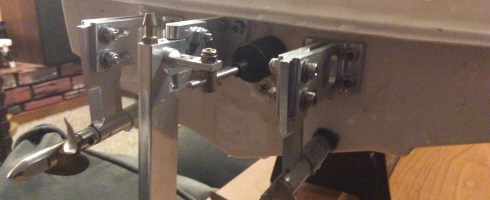

2x 4mm flex drive shafts
2x adjustable aluminum strutsstrut
2x 38mm 2 bladed propsprops
70mm aluminum rudder with water pickup

rudder

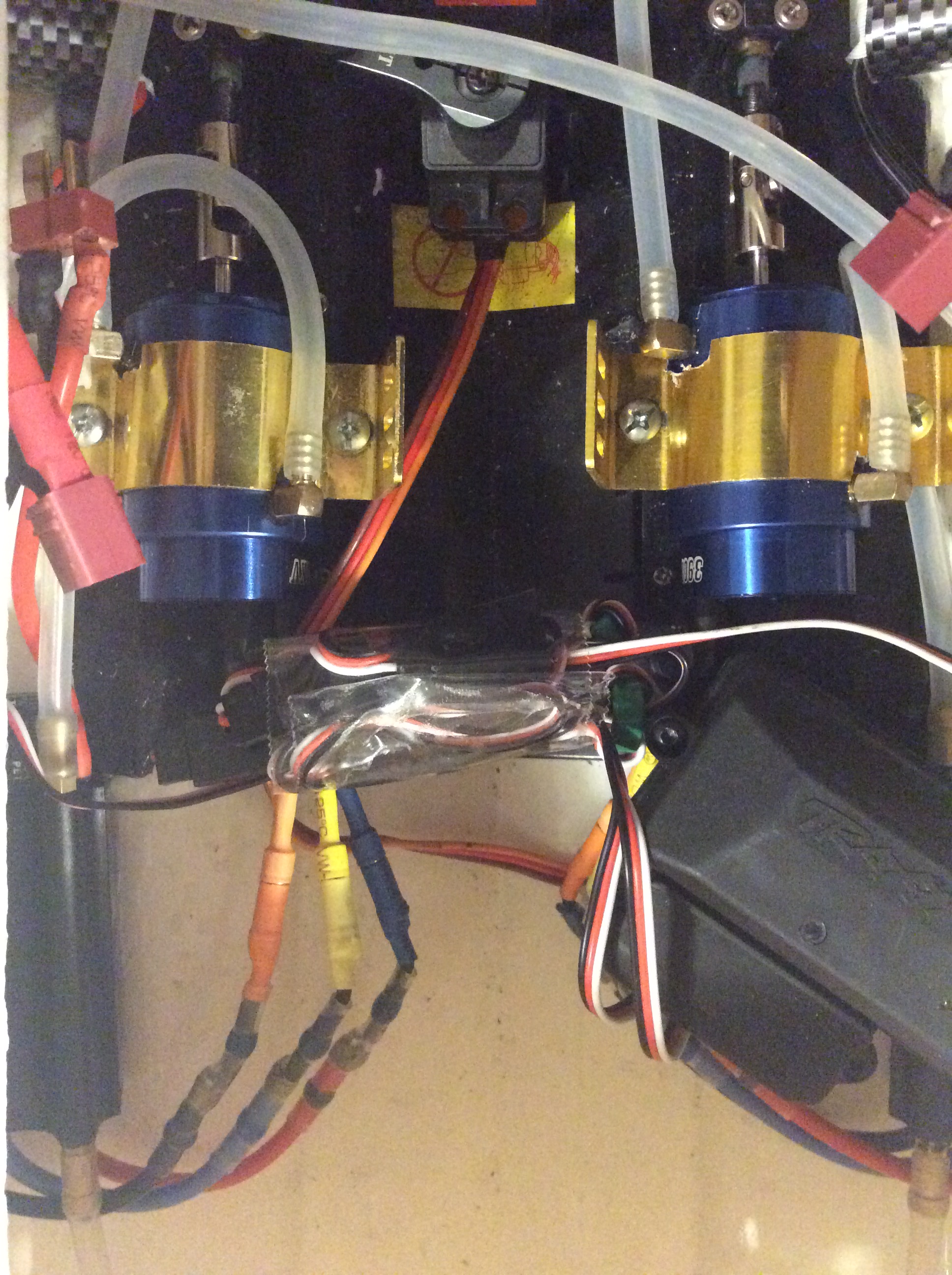

LED drone light stripsimage10.JPGimage6image13.JPG

These are just a few of the possibilities for modifying your Radio Ranger Rc Boat. Later we’ll go into some of the science of how everything works together. You should be able to research Rc Boat Modifications on Youtube and learn the simple basics for your new boat. Another good place for researching rc boat modifications is some of the rc forums like RcGroups or RcUniverse, once you get on their site click on forums, then boats then electric boats, you can also enter modifications into the search bars.

Advertisements

“Lets Go Rc Fishing, AGAIN”!

11 Oct
20 Trout w Bass Pro Rc Fishing Boat!

20 Trout w Bass Pro Rc Fishing Boat!

Once you think you’ve seen it all something catches your eye changes everything you thought about how to catch fish. Like the Radio Ranger Rc Fishing Boat! You have 5 fishing rods and every lure conceivable in your tackle box and here comes another Must Have piece of fishing equipment!

If you were thinking about adding a new rod or lure to your game consider the Radio Ranger first!  This Remote Control Fishing Boat may be all you’ll need to make a trip to the pond a more memorable one, and Catch More Fish! That’s right, a Fish Catching Remote Control Boat. Only $99.95 comes with a 2 Year Warranty!

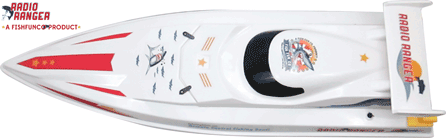

2--Radio-Ranger-Top-Deck-view

The perfect thing your fishing buddies probably never heard of, put down the same old fishing pole and pick up the Remote Control! Sometimes it PAYS to step out of your comfort zone, try new things!

New Radio Ranger ll, Opening the Box, Unboxing

25 Jan

A Glimpse into What is Included with The New Radio Ranger ll. The Radio Ranger also includes The Rc Fishing Pole, Fishing Line, Bobber and Hook. So just charge the boat battery and you’re ready for fishing. The Radio Ranger is also a big boat, at almost 3 feet long!

Two Ways to Catch Fish.

Pulling in the Fish WIth The Boat.

Attach the line on the end of Rc Fishing Pole, bait the hook, or attach a spinner or lure. When a fish hits you’ll see the bobber and the tip of The Rc Fishing Pole go down, set the hook by tapping the trigger on the remote once or twice.

Tip: When pulling in the fish with the boat the largest fish recorded is about 4 lbs., a big catfish! Its a good idea to let the fish pull the boat around until you see the fish getting tired, its easier to drive it in when its not fighting as much.

Tip: Using Waterproof Hatch Tape will help insure that if the boat happens to go under for a moment that the electronics will survive.

Using The Line Release Feature:

Most useful to get your line out far distances and release the line where you want. Also using the line release you can catch any size fish because you are using your regular fishing pole also.

Use the line release pads, put one on the tip of The Rc Fishing Pole and the other one on your fishing line (from your fishing pole) above your baited hook a few inches or a few feet depending how deep you want your bait while you drive it out. Allow the line out from your fishing rod while you drive the boat out to your fishing spot. Either leave the line attached until a fish hits or give it a tug to release the line from the boat.

Chumming for Fish:

There is an additional feature to use The Radio Ranger for fishing, chumming! With the optional Bait Bucket, ($9.95) it attaches on The Rc Fishing Pole. Add a handful or two of anything fish eat, attach your baited hook, and line, drive out the boat and drop it off where you want, create a fish feeding frenzy.chum-Bait-Bucket

Features:

Ready For Rc Fishing Fun.
Factory pre-assembled, ready-to-run
Detailed Exterior, Glossy White with Cool Fishing Decals
Two (2) High Performance, (air cooled), 390 motors
Prof. Designed Dual Propellers
Remote Distance: Up to about 300 Feet
Suitable for adults and children of age 10 or under with Adult Supervision

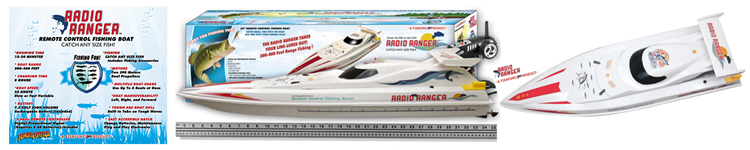

radio-ranger-box-and-buy

The Radio Ranger Rc Fishing Boat includes:

2.4 GHz 34″ Radio Ranger Rc Fishing Boat.
The Rc Fishing Pole Fishing Line, Bobber, and Hook, Line Release Pads. Radio Transmitter with 8-AA Batteries.
7.2 Volt 1800mah Boat Battery Pack and AC Wall Charger.
1 Extra Set of Propellers.
A Boat Stand for the Radio Ranger.
Set of decals Rc Fishing Pole and Boat Instructions with Rc Fishing Tips.

Radio Ranger Rc Fishing Boat Specifications

Length: ~34″ in.
Width: ~8 in.
Height: ~6 in
About 20 Mph Boat color: White

And This Video is a MUST WATCH! I’m much older than that and funny I was just as excited as him when I opened my Radio Ranger!

Florida Rc Bass Fishing Rc Style

8 Sep

Our friend in Florida sent this Summer Bass Rc Fishing Video in for your viewing pleasure! He looks like he’s been fishing his whole life, and he makes it look so easy too. When you’re in control as in remote control you are the boss and this guy shows us how its done. A little fancy background beat, send the Bass Sport out and Fish On!

Walleye Fishing Radio Ranger Style

8 Sep

We occasionally get the opportunity to catch the Radio Ranger doing what it does best, catching fish! This time we have the rare chance to see a birdseye view of the pristine outdoors and wildlife Michigan has to offer to adventurers. We also observe a keen Rc Fisherman catching prized Walleye!

Rc Fishing Boat Troubleshooting 101-My Radio Ranger has a problem, what do I do next?

16 Dec

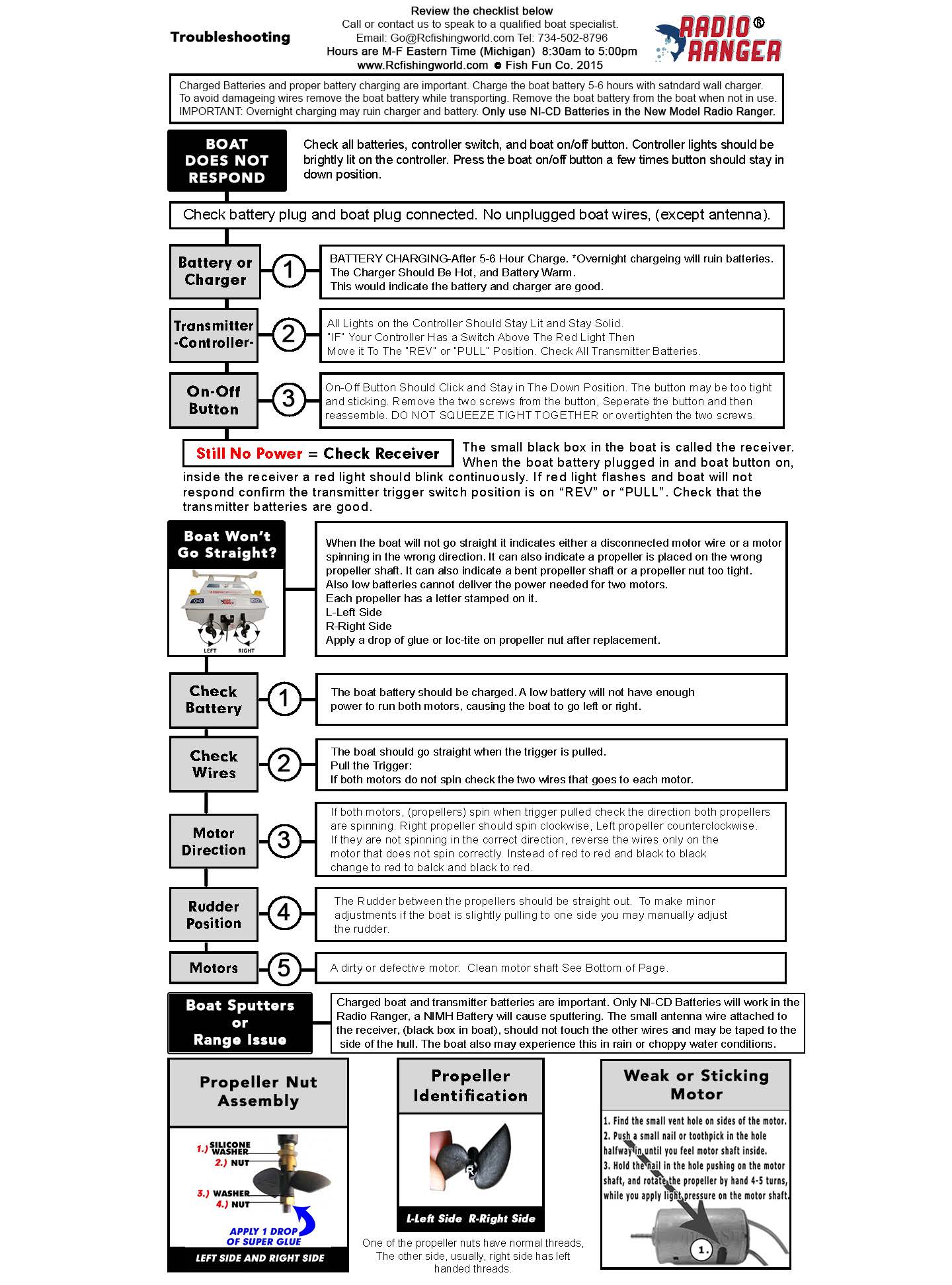

My Radio Ranger is not working, what do I do next? Review the troubleshooting sheet below for the most common problems and simple solutions. Click Here Troubleshooting to Print or View a Full Size Troubleshooting Sheet.

Proper Battery Charging-Transmitter Batteries-Unplugged or Reversed Wires are the most common issue you may have with a Radio Ranger Rc Fishing Boat. First charge the boat battery 5-6 hours (not overnight). The charger should be a little hot and the battery kind of warm. If not then the battery or charger could be defective.

The on/off button on the boat has a thick rubber grommet inside that may become stuck that can cause the boat to turn off itself if the button is assembled too tight. The button can be separated into two pieces to loosen it and then reassembled, do not tighten too tight.

Make sure the transmitter batteries are correctly installed, lights on the controller should be solidly lit. One bad battery in the controller will not be strong enough to get a good signal with the boat, if you have a bad transmitter battery it can effect the range and performance. A good idea is to tape your receiver antenna on the side of the hull, (the silver wire inside the boat) away from the rest f the wires. Never pull the antenna or try to extend it to outside the hull. while addressing reception, (a good signal) if the antenna wire is pulled it may become unsoldered inside the receiver.

The older Radio Ranger, Pre-6/2015 does not have a setting on the transmitter. On the new version Radio Ranger make sure the switch above the red light is on the “REV” position. The switch sets the trigger position, you can pull the trigger in or push the trigger to go forward, (the boats do not have reverse).

If the boat operates but will not go straight most likely the wires on one of the motors are backwards. Looking at the back of the boat from behind the boat the right side propeller should spin clockwise, and the left side should spin counter-clockwise. If a motor spins the wrong way just unplug the wires on that motor and reverse the wires. Keep in mind each propeller has a small letter on it, L-Left side, and R-Right side.

When changing a propeller one of the propeller nuts are left handed threads, usually the right side propeller nut. Turn that nut to the left to loosen it.

Click here to see a full page copy of the Troubleshooting sheet. Troubleshooting

After Troubleshooting your boat and you still are experiencing one of the problems you may need a new receiver or transmitter. Parts are available at: Rc Fishing World Parts Page





Troubleshooting

Chum-Create a Fish Feeding Frenzy Rc Boat Style with The Bait Bucket

19 Aug

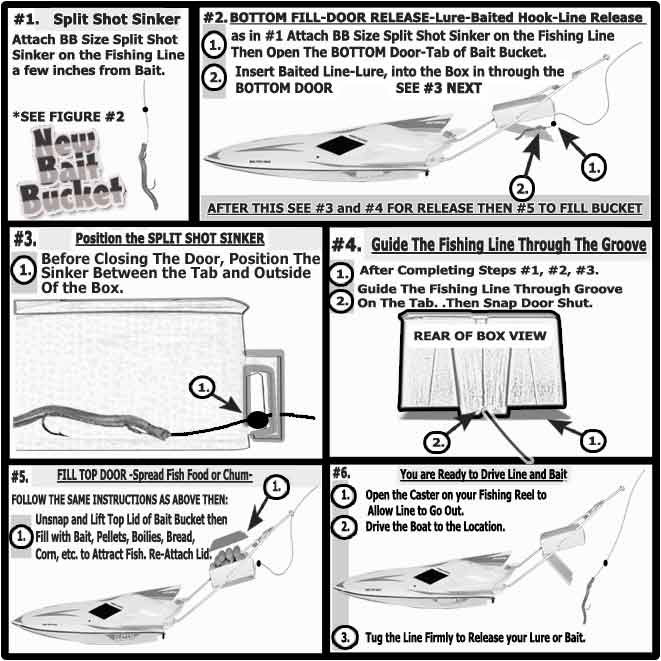

Bait-Bucket-When you just can’t locate the fish just have the fish come to you with the Fish Fun Bait Bucket. Delivers a handful of chum with your baited hook. Oh where, oh where are the fish at? Now you can attract all the fish you want. But there is fishing science behind the genius of the Bait Bucket. Chum attracts small bait fish which in turn attracts the big fish! Fill the Bait Bucket with breadcrumbs, corn or even dog food, add your baited hook and  guaranteed it will be like shooting fish out of a barrel. Rc-Bait-Buddy-Instructions-
